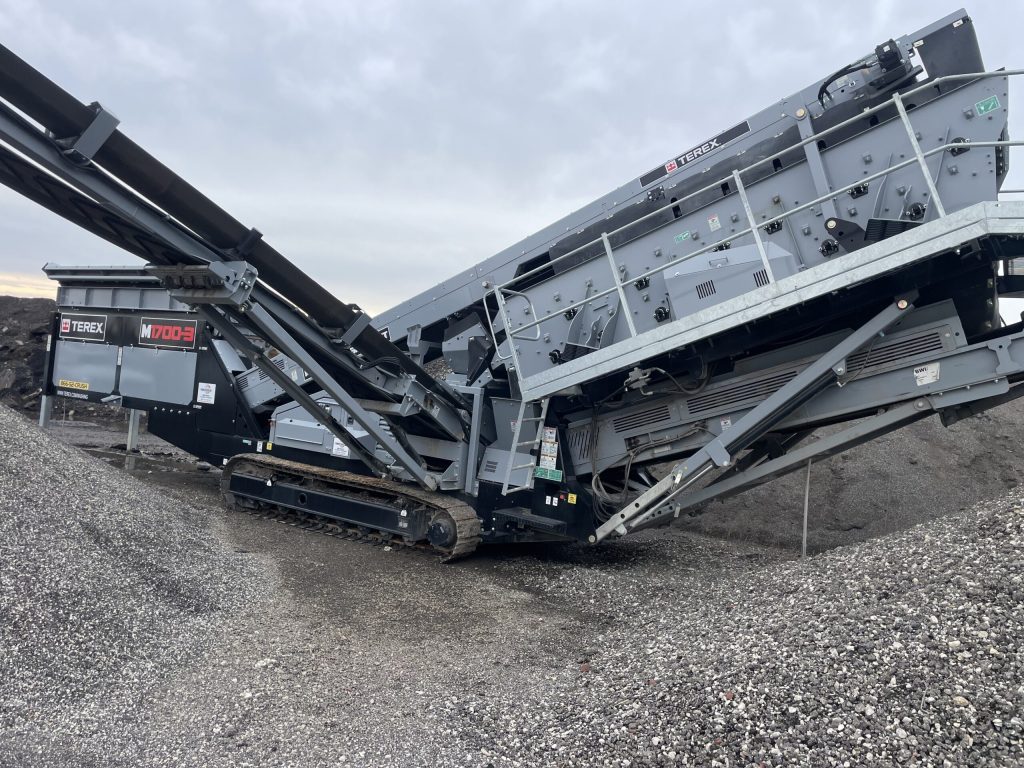

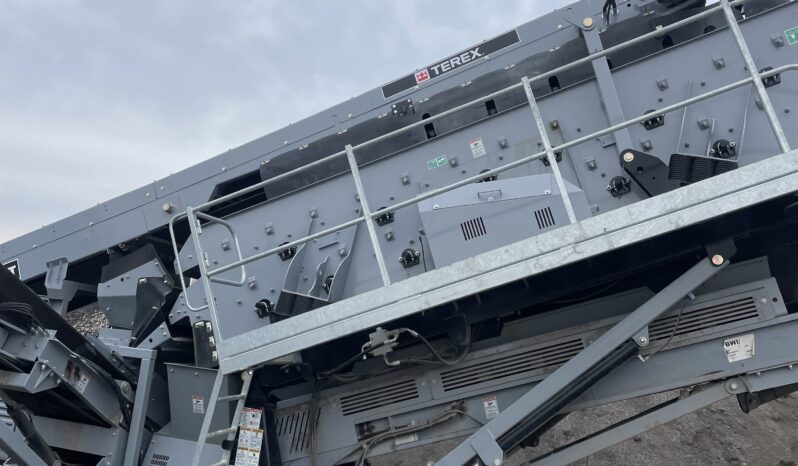

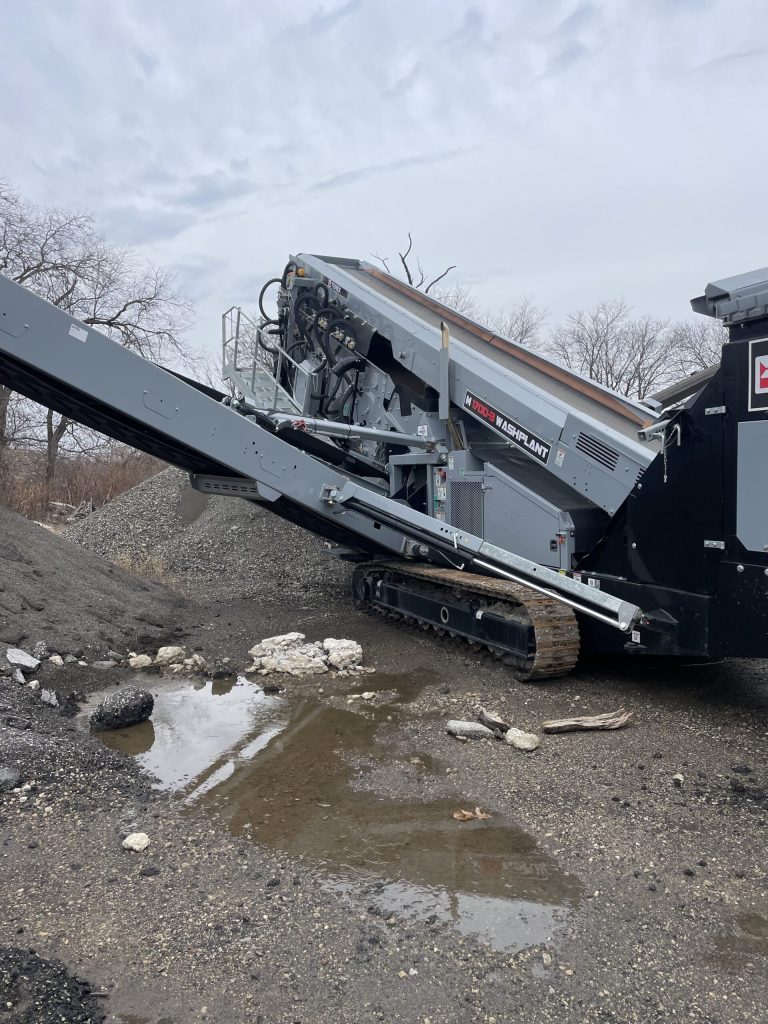

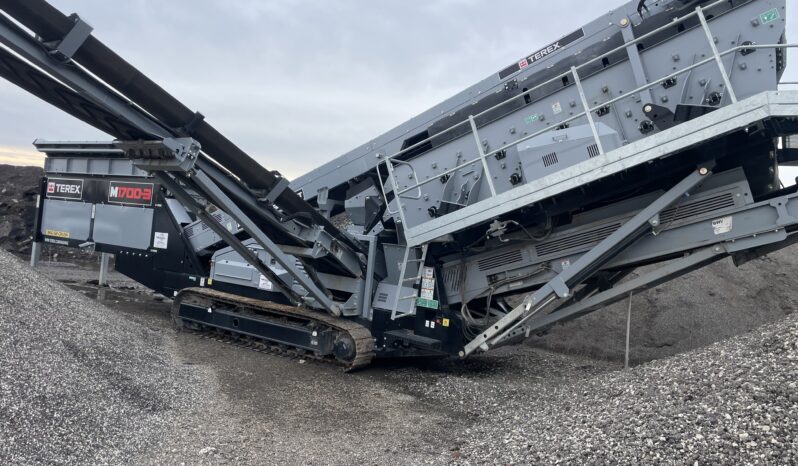

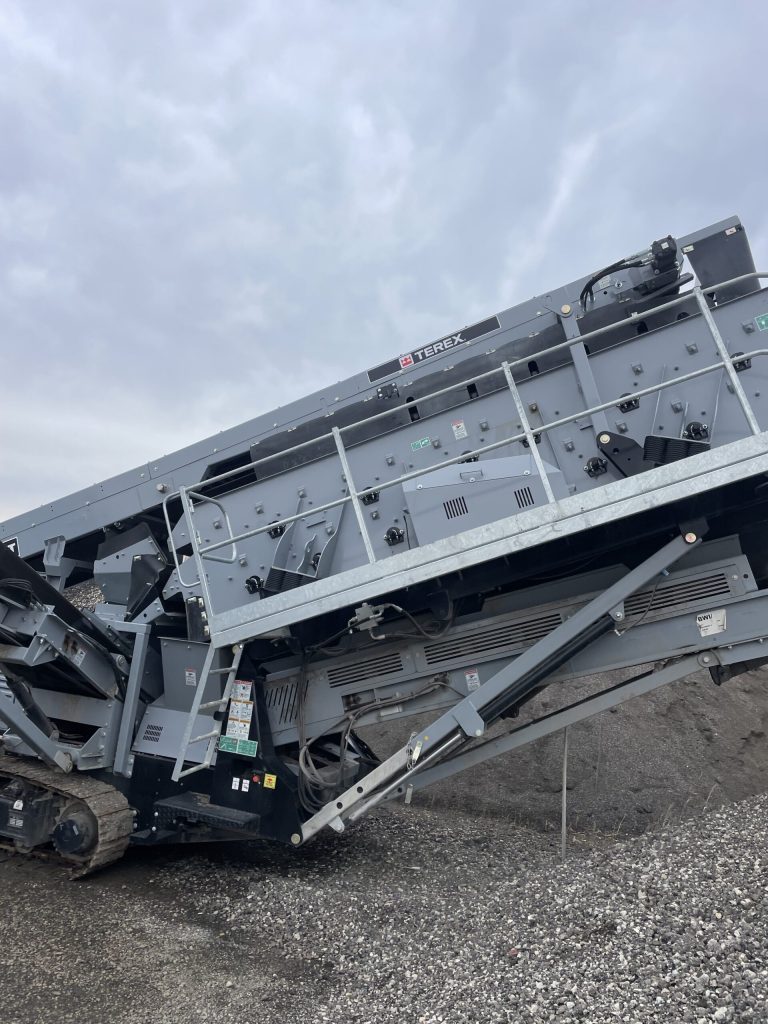

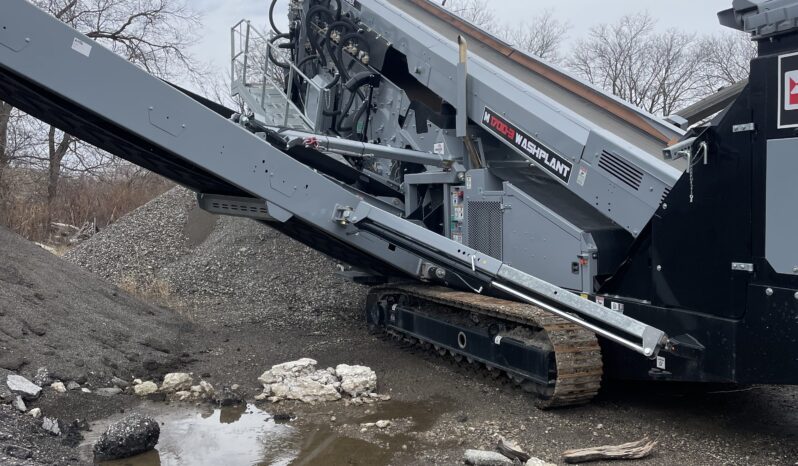

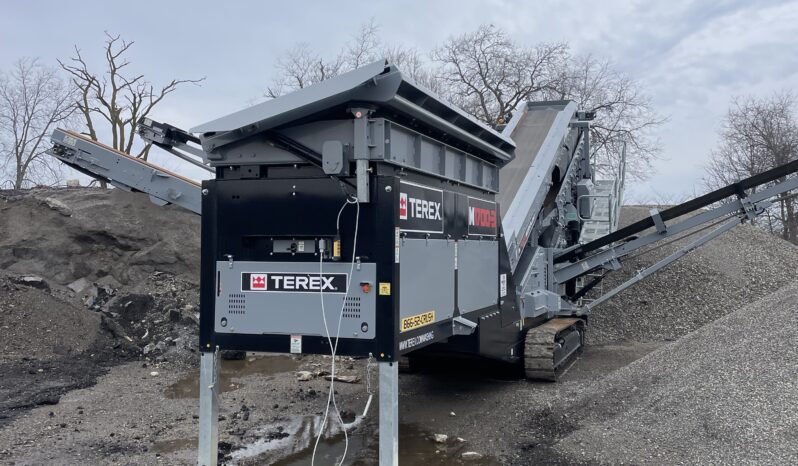

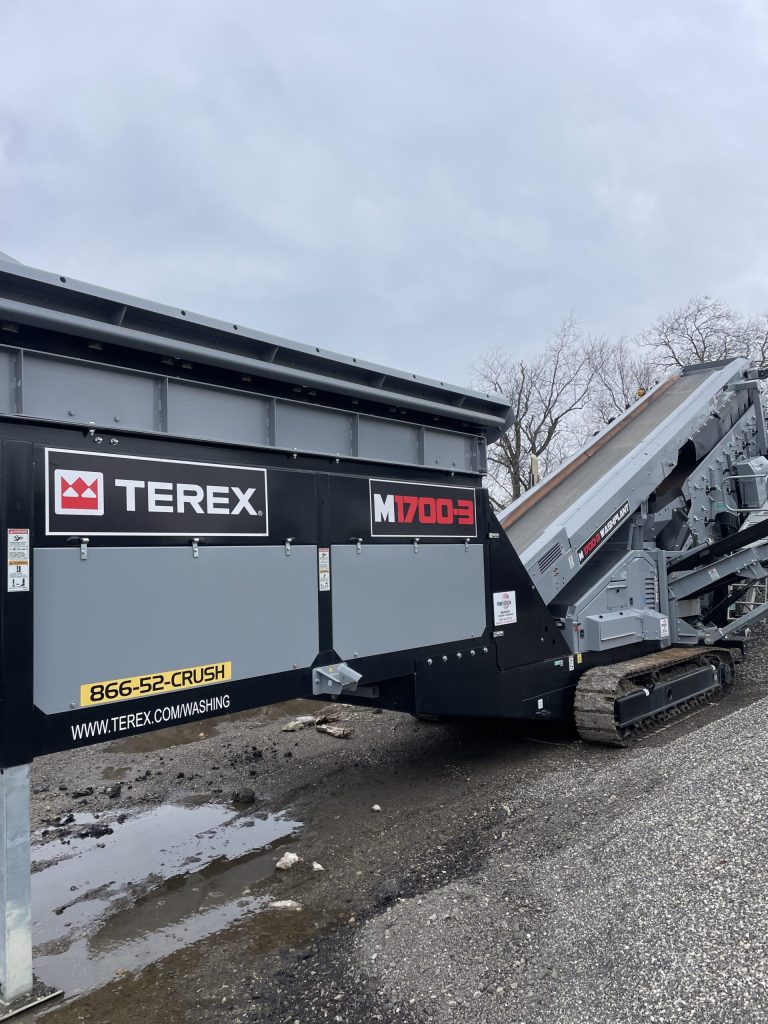

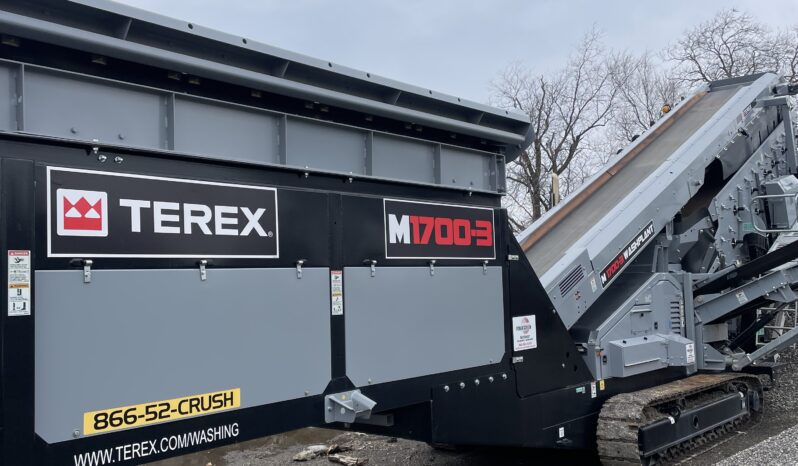

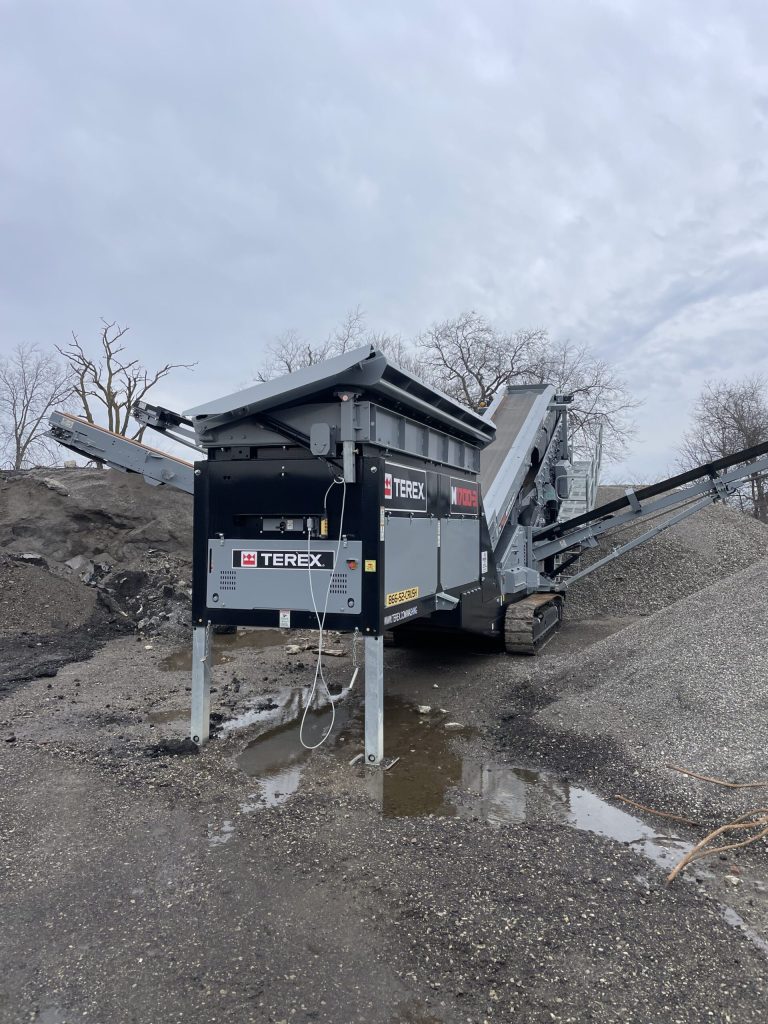

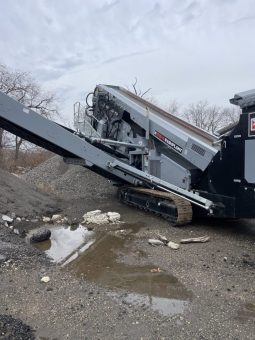

Terex M1700-3 Wash Plant FEATURES AND BENEFITS • High capacity (depends on mesh sizes and material type) • Quick set up time typically under 15 minutes • Maximum mobility with heavy duty, low ground pressure crawler tracks • Removable heavy duty pendant remote control system • Optional radio control system available • High performance hydraulic system • Angle adjustable tipping grid with radio control double acting tipping grid rams • Optional low profile single or double deck vibrating grid option with remote control tipping. Angle adjustable and fully riveted construction • Aggregate washing • Split bottom deck to produce two grades of sand • Hydraulic folding conveyors • Hydraulic screen angle adjustment • Screen walkway and access ladder APPLICATIONS • Sand and gravel • Topsoil • Coal • Crushed stone • Recycling • Iron Ore OPTIONS • 2 or 3 deck • 12ft 2 deck vibrating grid • Vibrating grid discharge chute • Crusher feed chute • Anti-roll back on main conveyor • Extended re-circulation oversize auxiliary conveyor • Dual power (can be operated electrically) • Quick release wedge screen tensioning system for top and middle deck • Bonded rubber wearplate in washbox • Sealed pipes with bonded rubber lining • 14’ x 5’ single or twin grade catchboxes • Rubber screens • Wheel or track mobile • Roll-in bogie prepared • Roll-in bogie equipped • Radio control tracks • Prepared TUV chassis • Auto lubrication system • Dry screen tail conveyor 14FT HOPPER • Adjustable angle tipping grid with integral loading and wing plates. • Dual action remote controlled tipping rams included as standard. FEED CONVEYOR • 1050mm (42”), 3 ply belt • 102mm diameter close pitched rollers • Drum Centres: 3495mm (12ft hopper) 4105mm (14ft hopper) • Hydraulic variable speed drive • Wide mouth opening • OMS 160 drive motor • Belt speed: 0-37.9 metres per minute (124ft per minute) MAIN CONVEYOR SIDE CONVEYORS • 1050mm (42”) 3 ply belt • Hydraulic Drive with Steel Skirting • OMV 630 drive motor • Working Angle 18° - 26°, hydraulically adjustable • 650mm (26”) 3 ply belt • Hydraulic drive • OMH 400 drive motor • Drum centre: 9670mm (31’ 8”) • Working angle 22° • 4.7m (15’ – 5”) stockpile height. (Measured to drum centre) • Stockpile volume of 175m3 3 DECK AUXILIARY CONVEYOR • 650mm (26”) 3 ply belt • Hydraulic drive • OMT 500 drive motor • Drum centre: 7245mm (23’ 8”) • Working angle 22° • 4.0m (13’ – 1”) stockpile height. (Measured to drum centre) • Stockpile volume of 115m3 SCREEN UNIT • 2 bearing high performance screenbox • Grease lubricated bearings • Pulley & triple belt drive • Width of screenbox 1.5m (5’) • Length of screenbox 4.88m (16’) • Weight of screenbox: 3500kg (7700lbs) • 4.8 x 1.5m (16’x 5’) top and middle deck, side tensioned 4 meshes per deck • 4.3 x 1.5m (14’ x 5’) bottom deck, end tensioned with 2 meshes per deck • Full width access catwalks on three sides of the screenbox for maintenance and ease of mesh changes • Screen Speed: 910-920 RPM • Screen Motor: Hamworthy 2208 motor • Working angle between 20° and 24° • Access panels for ease of screen change POWER UNIT & HYDRAULIC • Tier 3 rated Diesel Engine with a power output of 74kW (100hp) @ 2200rpm. Engine Mounted Transversely to allow easy access to the engine for servicing and maintenance. The power unit is completely enclosed, sound suppressed and lockable. RINSER OPTION CATCH BOX WASH BOX • Hydraulically hinged, making mesh changing easier • 50-50 fixed division plate • Adjustable division plates • 10” twin outlets • Single or double grade catch box with adjustable division plates • Adjustable 5 nozzle spray bar • Feed conveyor belt scraper SCREEN BOX 3 DECK SCREEN BOX 2 DECK • 18 steel spray bars split into 6 bars per deck • All decks have brass nozzles alternating between 8 & 7 per bar to give full spray coverage • 11 steel spray bars split into 6 bars top deck, 5 bottom • All decks have brass nozzles alternating between 8 & 7 per bar to give full spray coverage
